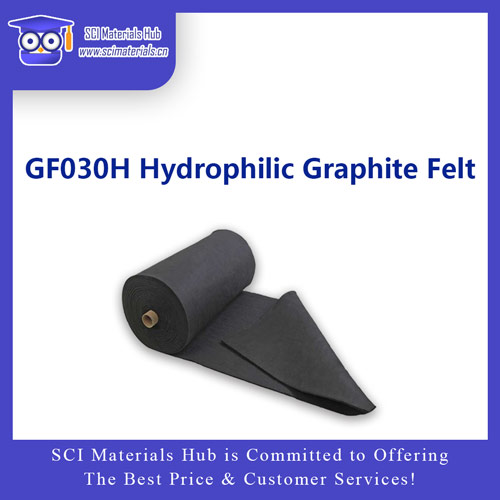

GFH Hydrophilic Graphite Battery Felt

The GFH Hydrophilic Graphite Battery Felt series is a high-performance carbon material based on CeTech GF graphite felt, chemically activated to introduce abundant oxygen-containing functional groups. This significantly enhances hydrophilicity and wettability, making it ideal for use as electrodes in flow batteries, such as vanadium redox flow batteries (VRFBs).

As a flow battery electrode material, GFH battery felt not only provides excellent electronic conductivity and electrolyte contact area but also improves charge/discharge efficiency, capacity utilization, and cycle stability. Its outstanding tensile and interlaminar shear strength ensures that the electrode structure resists wrinkling or deformation during long-term cycling, guaranteeing reliable operation of the battery.

🔑 Key Features

• Flow Battery Electrode Design: Optimized for electrolyte wetting and electron conduction to enhance battery performance

• Hydrophilic Activation: Improves wettability and ensures uniform electrolyte distribution within the felt

• High Mechanical Strength: Prevents electrode deformation or wrinkling under compression and cycling

• High BET Surface Area: Increases electrolyte contact area to boost battery capacity

• Multiple Hydrophilicity Levels: H(W)/H(M)/H(S) options to meet different flow battery design requirements

Hydrophilicity Grades:

• H(W) Weak: Minimal improvement in wettability, retains high conductivity

• H(M) Medium (Standard): Complete liquid wetting, most commonly used

• H(S) Strong: Full wetting with stronger hydrophilicity

🌊 Flow Battery Applications & Usage

Applications

• Vanadium Redox Flow Batteries (VRFBs): Used as positive and negative electrodes to enhance charge/discharge efficiency

• Other Flow Batteries: Such as zinc-bromine and iron-chromium systems, improving electrolyte utilization

• Laboratory Electrochemical Reactors: Provides high surface area and excellent wettability for liquid-phase reactions

Usage Instructions

1. Install Electrode: Cut GFH battery felt to the required size and place in the electrode position, ensuring uniform compression (15–25%)

2. Pre-wetting: Pre-immerse in electrolyte before first use to accelerate wetting

3. Select Hydrophilicity Grade:

   • H(W): Suitable for applications requiring high conductivity and fast response

   • H(M)/H(S): Suitable for full liquid wetting and improved electrolyte utilization

4. Maintenance: Avoid dust or oil contamination; if needed, mild acid washing or electrochemical cycling can reactivate hydrophilicity

📊 Model Specification Table (Hydrophilic Graphite Battery Felt)

🌍 International Orders & Shipping

📧 Email: contact@scimaterials.cn
📞 WhatsApp & Tel: +86 153-7569-8751

🔗 Place quick orders on our ebay / Amazon / Alibaba stores.

🌐 We ship worldwide via DHL, FedEx, UPS, SF-Express, or other requested carriers.
📦 Bulk quantities with discount available upon request.

💳 Payment methods accepted: Bank Wire Transfer, PayPal, Credit Card (via Taobao), Alipay, WeChat Pay

GFH Hydrophilic Graphite Battery Felt – Specifications & Price Table

💡 Notes:

• H(W)/H(M)/H(S) correspond to weak / standard / strong hydrophilicity. Weak retains high conductivity; standard and strong show complete wetting.

• Sizes arranged from small to large for easy comparison.
