3-Layer Catalyst Coated Membrane｜High-Performance Noble Metal Catalysts｜Multi-Brand Customization Available

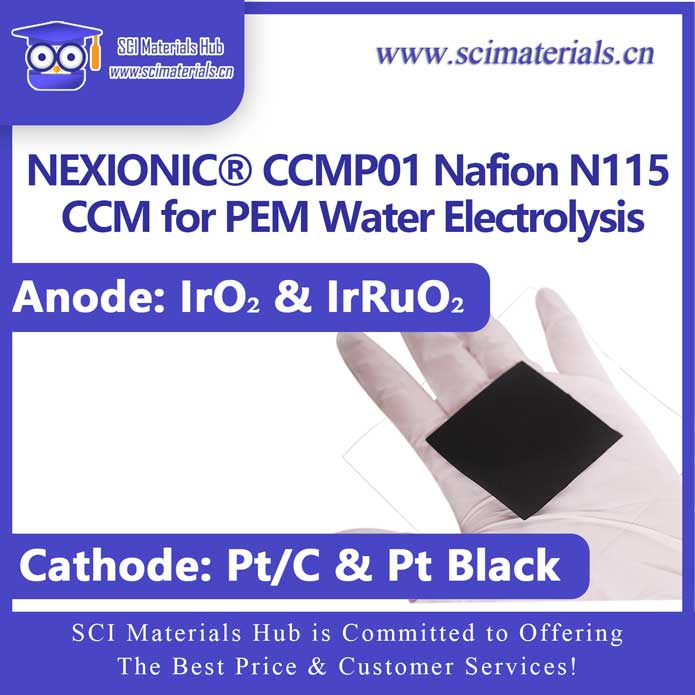

The NEXIONIC® Nafion PEM Water Electrolysis MEA is specifically designed for Proton Exchange Membrane (PEM) water electrolysis systems. It adopts a 3-layer catalyst-coated membrane (CCM) structure with excellent conductivity, catalytic performance, and chemical stability. Each MEA consists of:
Cathode Catalyst Layer: Pt/C (0.1–2 mg/cm²) or Pt Black (1–4 mg/cm²)
PEM Layer: Nafion series membranes (NR212, N115, N117)
Anode Catalyst Layer: IrO₂ or IrRuO₂ (1–4 mg/cm²)
All catalyst layers are bonded using Nafion ionomer binders, ensuring strong interfacial contact and efficient proton conduction.
| Feature | Description |
|---|---|
| 🔬 Integrated 3-Layer Structure | Cathode + Membrane + Anode in one piece; low interfacial resistance |
| ⚡ High Catalytic Activity | Noble metal catalysts reduce OER and HER overpotentials |
| 🧴 Nafion Binder Integration | Excellent proton transport and structural stability |
| 🧪 Multi-brand Catalyst Options | Support for various renowned catalyst brands |
| 📦 Delivered in Dry State | Dry by default; easier for transport and thermal compression |
| 🔧 Customizable Sizes & Layers | Hot-pressed or non-pressed; optional GDL, sealing gaskets, etc. |
| Parameter | Specification |
|---|---|
| Structure | 3-Layer CCM (Cathode + Membrane + Anode) |
| Cathode Catalyst | Pt/C (0.1–0.5 mg/cm²) or Pt Black (1–4 mg/cm²) |
| Anode Catalyst | IrO₂ or IrRuO₂ (1–4 mg/cm²) |
| Supported Catalyst Brands | Premetek®, Accelerate®, Fueiceel®, JM Hispec, Alfa Aesar, Tanaka (Japan) |
| Membrane Type | Nafion NR212 (~51 µm), N115 (~127 µm), N117 (~183 µm) |
| Binder Type | Nafion ionomer (D520, D521, D2020, D2021) |
| Factory Condition | Dry by default; hot-pressed or non-pressed upon request |
| Standard Sizes | 1×1 cm², 2×2 cm², 2.25×2.25 cm², 5×5 cm², 10×10 cm²; custom sizes supported |
| Orientation | Anode (+) faces OER side; Cathode (–) faces HER side |
PEM single-cell water electrolysis experiments
Electrolyzer stack development and evaluation
Green hydrogen production research and education
Electrode material validation platforms
Catalyst comparison and benchmarking studies
| Module | Customization Options |
|---|---|
| 🎯 Electrode Size | Circular / square / irregular cutting supported |
| 🧬 Catalyst Loading | Adjustable based on research or application requirements |
| 🧩 Add-on Layers | Add GDLs (titanium mesh/foam), sealing gaskets, or support layers |
| 🔥 Thermal Compression | Supplied hot-pressed or non-pressed (user pressable) |
| Category | Options |
|---|---|
| MEA Structure | - 3-layer CCM - 5-layer CCM + 2 gaskets - 7-layer MEA (with PTLs) |
| Cathode Catalyst | Pt/C or Pt Black (Premetek®, Accelerate®, Fueiceel®, Tanaka, etc.) |
| Anode Catalyst | IrO₂ or IrRuO₂ (same brand options) |
| PEM Membrane | Nafion® N115 / N117, or Fumasep® F-10120-PK / FS-990-PK |
| Ionomer Binder | Nafion® D520 / D521 (5%), D2020 / D2021 (20%) |
| Binder-to-Catalyst Ratio | Standard 20 wt%, adjustable from 10–35 wt% |
| Hot Pressing | Optional; hot-pressed or non-pressed supply |
| Hot Pressing Conditions | 120–140 °C, 1–2 MPa, 2–5 minutes |
| Optional Structures | PTLs (titanium mesh/foam), matching gaskets |
| Size Options | From 1×1 cm² up to 10×10 cm²; custom shapes available |
| Delivery Condition | Dry by default; wet version available on request |
Logistics: Default via SF Express (standard or cold chain); international DHL supported
Lead Time: Stock items ship in 1–3 business days; custom orders in 3–7 days
Included Materials: User manual, product labels, catalyst loading and brand info
Invoice: Standard or VAT invoices available for institutions and businesses
📞 For tailored design, experimental support, or consultation, please contact our support team via [Customer Service] or [Order Now]!
For international orders, please ask us for quotes via
Email: contact@scimaterials.cn
Tel: +86 130-0303-8751 / +86 156-0553-2352
Wechat: 15375698751
| Active Area (cm²) | Cathode Catalyst | Anode Catalyst | Membrane | Hot Pressing | Catalyst loading (Cathode + Anode, mg/cm²) & Price |
|---|---|---|---|---|---|
| 1x1 | TKK 40%Pt/C | Accelerate® IrO₂ | N115 3x3cm | No | USD$30 (0 + 2, single anode coating) USD$25 (0.5 + 0, single cathode coating) USD$50 (0.5 + 2, double sides coating) |
| 1x1 | TKK Pt Black | Accelerate® IrO₂ | N115 3x3cm | No | USD$30 (0 + 2, single anode coating) USD$30 (2 + 0, single cathode coating) USD$55 (2 + 2, double sides coating) |
| 2x2 | TKK 40%Pt/C | Accelerate® IrO₂ | N115 5x5cm | No | USD$60 (0 + 2, single anode coating) USD$50 (0.5 + 0, single cathode coating) USD$100 (0.5 + 2, double sides coating) |
| 2x2 | TKK Pt Black | Accelerate® IrO₂ | N115 5x5cm | No | USD$60 (0 + 2, single anode coating) USD$60 (2 + 0, single cathode coating) USD$110 (2 + 2, double sides coating) |
| 2.25x2.25 | TKK 40%Pt/C | Accelerate® IrO₂ | N115 5x5cm | No | USD$70 (0 + 2, single anode coating) USD$60 (0.5 + 0, single cathode coating) USD$120 (0.5 + 2, double sides coating) |
| 2.25x2.25 | TKK Pt Black | Accelerate® IrO₂ | N115 5x5cm | No | USD$70 (0 + 2, single anode coating) USD$70 (2 + 0, single cathode coating) USD$130 (2 + 2, double sides coating) |
| 5x5 | TKK 40%Pt/C | Accelerate® IrO₂ | N115 7x7cm | No | USD$140 (0 + 2, single anode coating) USD$120 (0.5 + 0, single cathode coating) USD$190 (0.5 + 2, double sides coating) |
| 5x5 | TKK Pt Black | Accelerate® IrO₂ | N115 7x7cm | No | USD$140 (0 + 2, single anode coating) USD$140 (2 + 0, single cathode coating) USD$200 (2 + 2, double sides coating) |
| 10x10 | TKK 40%Pt/C | Accelerate® IrO₂ | N115 12x12cm | No | USD$250 (0 + 2, single anode coating) USD$200 (0.5 + 0, single cathode coating) USD$300 (0.5 + 2, double sides coating) |
| 10x10 | TKK Pt Black | Accelerate® IrO₂ | N115 12x12cm | No | USD$250 (0 + 2, single anode coating) USD$220 (2 + 0, single cathode coating) USD$320 (2 + 2, double sides coating) |
| Customized size | Customizable | Customizable | Customizable | Customizable | Ask for quote |
Other cost: hot pressing (+USD10), hot pressing+PEN edge banding film (+USD20)
The default cathode catalyst is TKK Platinum Carbon & Platinum Black, and the anode catalyst is Accelerate ® IrO₂
Other catalysts available: Premetek®, Accelerate®, Fueiceel®, JM Hispec®, Alfa Aesar®, TKK
Worldwide shipping via DHL, SF-Express & other requested carriers.
Bulk quantities with discount upon request.
Payments via Bank Wire Transfer, Paypal, Credit card (via Taobao), Alipay, Wechat-pay are accepted.
