🔥 Product Overview

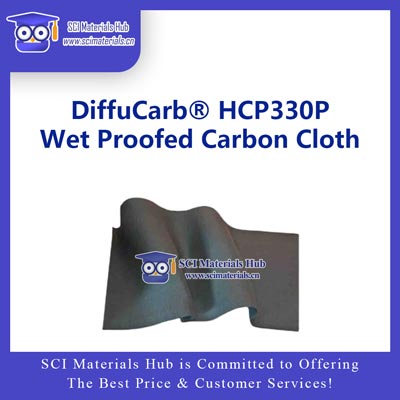

The DiffuCarb® HCP Series Carbon Cloth is a high-performance conductive material specifically developed for fuel cells and other electrochemical applications. The series includes soft carbon cloth (HCP330 series) and hard carbon cloth (HCP331 series). Products are available in various hydrophilic/hydrophobic treatments, without microporous layers (MPL), providing excellent durability, low resistance, and good gas permeability.
The HCP Series Carbon Cloth offers a cost-effective alternative to traditional woven carbon cloth Gas Diffusion Layers (GDL), meeting the diverse requirements of electrochemical systems.
🔹 Key Features
✅ High Durability – Stable carbon fiber structure suitable for long-term fuel cell operation and repeated use.
✅ Low Electrical Resistance – Excellent conductivity ensures efficient electron transfer.
✅ Multiple Hydrophilic/Hydrophobic Options – Available as hydrophilic, partially hydrophobic (10%), or adjustable hydrophobic (1–80%), supporting liquid penetration or gas barrier applications.
✅ Soft or Hard Options – Soft cloth (HCP330 series) for flexible applications; hard cloth (HCP331 series) for structural support and high-stress environments.
✅ Standardized Sizes – Standard 32×16 cm, with custom sizes available (e.g., 8×8 cm, 16×16 cm).
✅ Precise Thickness Control – ±0.02 mm ensures uniformity in GDL layers.
🌐 Application Scenarios
Fuel Cells (PAFC / PEFC): Gas diffusion layer supporting catalyst layers, preventing liquid flooding, and improving reaction efficiency.
Supercapacitors: High-conductivity electrode substrate for enhanced charge storage.
Metal–Air Batteries: Breathable, waterproof layer protecting internal components.
Biofuel Cells: Compatible with enzyme catalysis, optimizing electron transfer.
Electrochemical Material Preparation: Substrate for electrodeposition and solution-phase synthesis.
🔹 Model Specifications (No MPL)
| Model | Texture | Hydrophilic/Hydrophobic | Thickness (mm) | Resistance (mΩ·cm²) | Basis Weight (g/m²) |
|---|---|---|---|---|---|
| HCP330N | Soft | Hydrophilic | 0.33 ± 0.02 | ≤14 | 110–150 |
| HCP330P | Soft | 10% Hydrophobic | 0.35 ± 0.02 | ≤36 | 130–170 |
| HCP330T | Soft | 1–80% Hydrophobic (PTFE) | 0.33–0.40 | ≤40 | 111–600 |
| HCP330F | Soft | 1–80% Hydrophobic (FEP) | 0.33–0.40 | ≤40 | 111–600 |
| HCP331N | Hard | Hydrophilic | 0.35 ± 0.02 | ≤12 | 150–190 |
| HCP331P | Hard | 10% Hydrophobic | 0.35 ± 0.02 | ≤22 | 160–200 |
| HCP331T | Hard | 1–80% Hydrophobic (PTFE) | 0.33–0.40 | ≤25 | 151–800 |
| HCP331F | Hard | 1–80% Hydrophobic (FEP) | 0.33–0.40 | ≤25 | 151–800 |
Note: T/F hydrophobic treatments use DuPont PTFE or FEP materials.
🔹 Selection Guide
Soft vs. Hard
Soft (HCP330 series): Suitable for flexible applications or fuel cell electrodes.
Hard (HCP331 series): Suitable for structural support or high-pressure applications.
Hydrophilic/Hydrophobic Treatment
N (Hydrophilic): For liquid penetration or electrodeposition processes.
P (10% Hydrophobic): Partially blocks liquid, suitable for fuel cell gas layers.
T/F (1–80% Adjustable Hydrophobic): Optimized for specific operating conditions.
Thickness and Resistance Matching
Greater thickness increases mechanical strength and gas diffusion path; optimize based on application.
Lower resistance improves conductivity, ideal for high power-density requirements.
💬 FAQ
Q1: Can the carbon cloth be custom-sized?
A1: Standard sizes are 8×8 cm, 16×16 cm, 32×16 cm; custom sizes are available.
Q2: Can the carbon cloth be reused?
A2: Both soft and hard carbon cloth can be reused in fuel cells if the surface is kept clean and free of mechanical damage.
Q3: Can the carbon cloth be combined with an MPL?
A3: Yes, MPL-coated custom products are available to further enhance liquid/gas management.
🌟 Summary
DiffuCarb® HCP Series Carbon Cloth offers a low-cost, high-performance solution for fuel cells and various electrochemical systems. Multiple models with soft/hard textures and different hydrophilic/hydrophobic treatments provide flexibility to meet diverse operational requirements, making it a reliable and economical choice for conductive materials.
🌍 International Orders & Shipping
📧 Email: contact@scimaterials.cn
📞 WhatsApp & Tel: +86 153-7569-8751
🔗 Place quick orders on our eBay / Amazon stores.
🌐 We ship worldwide via DHL, FedEx, UPS, SF-Express, or other requested carriers.
📦 Bulk quantities with discount available upon request.
💳 Payment methods accepted: Bank Wire Transfer, PayPal, Credit Card (via Taobao), Alipay, WeChat Pay
| Model | Notes | 8×8 cm | 16×16 cm | 16×32 cm |
|---|---|---|---|---|
| HCP330N | Soft, Hydrophilic | $20 | $36 | $62 |
| HCP330P | Soft, 10% Hydrophobic | $20 | $36 | $62 |
| HCP330T | Soft, Adjustable 1–80% Hydrophobic (PTFE) | / | / | / |
| HCP330F | Soft, Adjustable 1–80% Hydrophobic (FEP) | / | / | / |
| HCP331N | Hard, Hydrophilic | $20 | $42 | $78 |
| HCP331P | Hard, 10% Hydrophobic | $20 | $42 | $78 |
| HCP331T | Hard, Adjustable 1–80% Hydrophobic (PTFE) | / | / | / |
| HCP331F | Hard, Adjustable 1–80% Hydrophobic (FEP) | / | / | / |
💡 Notes:
Prices are reference retail; bulk orders are negotiable.
“T/F” indicates adjustable hydrophobic treatment using DuPont PTFE or FEP materials.
The higher the hydrophobic content, the stiffer the carbon cloth becomes.
