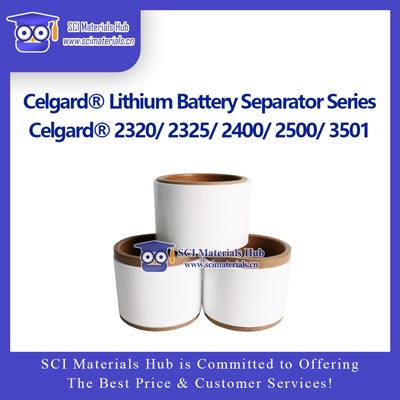

💎 Celgard® Lithium Battery Separator Series
High-Performance Microporous Membranes | Excellent Chemical & Thermal Stability | Zero Transverse Shrinkage
🌟 Product Overview
Celgard® microporous separators are globally recognized high-end materials for lithium-ion battery systems. They are made of polypropylene (PP) or polypropylene/polyethylene/polypropylene (PP/PE/PP) trilayer structures using a precision dry-stretching process. These separators feature high chemical stability, low thermal shrinkage, high porosity, and excellent mechanical strength—delivering outstanding safety and cycle life in power batteries, energy storage systems, and consumer electronic cells.
⚙️ Product Series and Key Properties
| Model | Structure | Thickness | Gurley | Porosity | Key Features | Typical Applications |
|---|---|---|---|---|---|---|
| Celgard® 2320 | PP/PE/PP | 20μm | 530s | 39% | Zero TD shrinkage, low self-discharge, high chemical stability | High-energy-density Li-ion systems |
| Celgard® 2325 | PP/PE/PP | 25μm | 620s | 39% | Excellent oxidation resistance and dimensional stability | Power & energy storage batteries |
| Celgard® 2340 | PP/PE/PP | 38μm | 780s | 45% | Thicker membrane, enhanced mechanical strength | High-strength energy cells |
| Celgard® 2400 | Single-layer PP | 25μm | 620s | 41% | Superior thermal stability and long life | Primary lithium batteries |
| Celgard® 2500 | Single-layer PP | 25μm | 200s | 55% | High porosity, low resistance, high-rate capability | High-power Li-ion systems |
| Celgard® 3501 | PP (with surfactant coating) | 25μm | 55s | — | Excellent wettability and low impedance | Water-based electrolyte batteries |
💡 Product Advantages
Zero Transverse Shrinkage: Greatly reduces the risk of internal short circuits.
Superior Thermal and Oxidative Stability: Reliable performance under high-temperature cycling and storage.
High Porosity & Uniform Pore Distribution: Ensures excellent ionic conductivity.
High Mechanical & Puncture Strength: Enhances structural safety and consistency of cells.
Multiple Configurations Available: Meets diverse needs from high energy density to high safety applications.
⚗️ Usage and Storage Guidelines
Operating Environment: Handle in a clean, dry, dust-free environment. Avoid mechanical stretching or contamination.
Storage Conditions: Keep sealed under < 40 °C and < 70 % RH. Avoid direct sunlight.
Electrolyte Wettability: Compatible with common carbonate-based electrolytes (e.g., EC/EMC/DEC). Coated grades such as 3501 provide faster wetting performance.
❓ Frequently Asked Questions (FAQ)
Q1: Can Celgard® separators withstand high temperatures?
A: Yes. The PP/PE/PP trilayer separators maintain zero transverse shrinkage at 105 °C, ensuring excellent dimensional stability.
Q2: What’s the main difference between Celgard® 2320 and 2325?
A: 2320 is thinner (20 μm) and optimized for high energy density, while 2325 (25 μm) offers enhanced mechanical safety and cycle stability.
Q3: What is the function of the coating in Celgard® 3501?
A: The surfactant coating significantly improves surface wettability, ideal for aqueous or high-polarity electrolytes.
Q4: Do Celgard® separators require any pretreatment before use?
A: No. They are ready to use directly in cell assembly without additional pretreatment.
📧 Email: contact@scimaterials.cn
📞 WhatsApp & Tel: +86 153-7569-8751
🔗 Place quick orders on our eBay / Amazon / Alibaba stores.
🌐 We ship worldwide via DHL, FedEx, UPS, SF-Express, or other requested carriers.
📦 Bulk quantities with discount available upon request.
💳 Payment methods accepted: Bank Wire Transfer, PayPal, Credit Card (via Taobao), Alipay, WeChat Pay
📦 Celgard® Microporous Separator Series · Specifications & Price List (USD $)
| Model | Thickness (µm) | Structure | 60 mm × 10 m | 60 mm × 50 m | 60 mm × 100 m | Lead Time |
|---|---|---|---|---|---|---|
| Celgard® 2320 | 20 | Trilayer PP/PE/PP | $11 | $33 | $62 | In Stock |
| Celgard® 2325 | 25 | Trilayer PP/PE/PP | $11 | $33 | $62 | In Stock |
| Celgard® 2340 | 38 | Trilayer PP/PE/PP | $11 | $33 | $62 | In Stock |
| Celgard® 2400 | 25 | Single Layer PP | $11 | $33 | $62 | In Stock |
| Celgard® 2500 | 25 | Single Layer PP | $11 | $33 | $62 | In Stock |
🔸 Celgard® 3501 — Aqueous-Compatible Separator
| Width | Thickness (µm) | Structure | 1 m | 5 m | 10 m | Lead Time |
|---|---|---|---|---|---|---|
| 50 mm | 25 | Single Layer PP (with surfactant modification) | $37 | $147 | $247 | In Stock |
| 60 mm | 25 | Single Layer PP (with surfactant modification) | $42 | $164 | $264 | In Stock |
| 80 mm | 25 | Single Layer PP (with surfactant modification) | $44 | $197 | $297 | In Stock |
