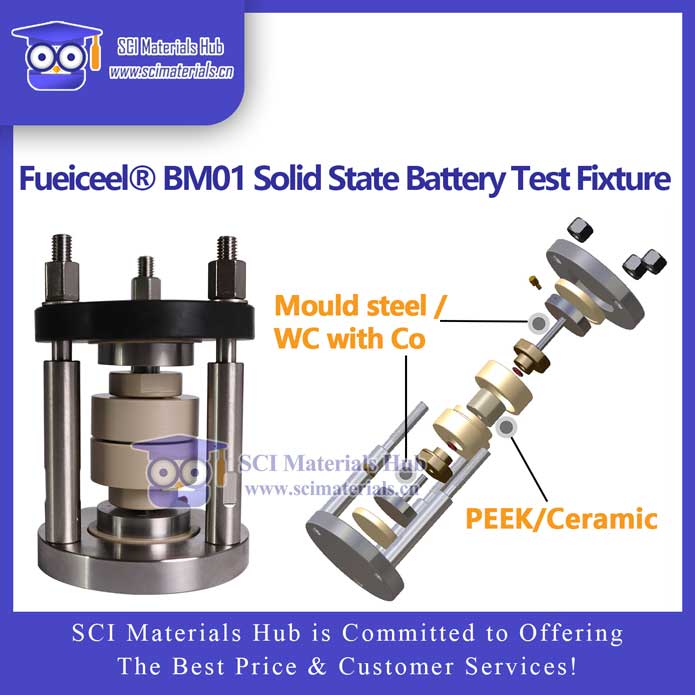

🔬 Fueiceel® BM01 Series Solid-State Battery Mold Kit

Electrochemical Test Fixture for Solid Electrolyte Cells

💡 Engineered for scientific research, this device simulates the real pressure conditions of solid-state electrolyte cells for precise electrochemical performance evaluation.

🚀 Product Overview

The BM01 mold kit is a laboratory device designed for research on solid-state lithium-ion batteries.
(⚠️ Note: Pressure sensors and control systems not included by default.)

It simulates actual pressure conditions in solid-state batteries and supports various electrolyte materials for two- and three-electrode systems. Ideal for testing conductivity, impedance, and general electrochemical behavior under controlled pressure.

🧪 Compatible with the BS01 Multi-Channel Solid State Battery Pressure Test System. Each channel supports independent pressure settings, synchronized operation, and individual data export—perfect for comparative studies.

📦 Standard Kit Contents

📐 Specifications & Dimensions

Example (BM01-10):

• Inner Chamber (with PPS sleeve): Ø40 mm

• Cavity Diameter: 10 mm

• Total Assembly Height: 130 mm




🔧 Key Features

✅ Excellent Sealing: Double O-ring system with Teflon contact seals provides superior leak resistance compared to conventional PEEK seals.

✅ High Pressure Stability: Supports up to 300 MPa long-term; tested up to 400 MPa under controlled conditions.

✅ Wide Thermal Compatibility: Safe for continuous use from –40°C to 200°C, suitable for various electrolyte and binder systems.

✅ Easy Sample Handling: User-friendly disassembly/assembly process—ideal for glovebox operation and rapid sample exchange.

✅ Precision Ground Contacts: All pressing and electrode interfaces are flat-milled for enhanced contact and reproducibility.

✅ Cost-Effective: Durable material selection + replaceable parts = long service life and lower cost of ownership for research labs.

🔍 Pressure Reference Guide

• Typical Testing Range: 80–150 MPa

• With Lithium/Indium foils: Recommend < 80 MPa

• 1-ton press ≈ 125 MPa pressure inside mold

• High-load version (with tungsten carbide rods): pressure tolerance up to 1000 MPa (1 GPa)

⚙️ Installation & Operation (Glovebox Friendly)

Step-by-step Workflow:

1. Place the mold base inside the glovebox

2. Load solid electrolyte sample into the chamber

3. Lower the press rod using a powder press or screw rotation

4. Apply desired pressure

5. Lock screws on top to maintain seal

6. Remove mold for ex-situ testing (optional: apply vacuum grease to reduce leakage)

🧊 Material & Design Notes

• Mold insulation: Ceramic or PEEK sleeve

• Outer protection: PPS high-strength shell

• Electrodes: Hardened mold steel

• Modular build: Easy replacement of wear parts (seals, screws, insulation sleeve)

⚠️ Safety & Maintenance Instructions

• Must operate entire process within an inert glovebox

• Do not exceed the maximum working pressure per model

• After use:

  • Clean powder residues

  • Wipe with alcohol

  • Apply grease on pressing rods

  • Use rubber caps to prevent oxidation

  • Store in a dry, sealed environment

🛠 Usage Limitations

• Never exceed pressure ratings (varies by chamber size)

• Always tighten screws after reaching target pressure

• Use with transfer fixtures for safe transport and long-term pressure holding

• Replace consumables (O-rings, insulation sleeves, rods) as needed—contact support for spares

💬 Frequently Asked Questions (FAQ)

Q1: How to apply accurate pressure?
Use a torque wrench or a mechanical press. Once target pressure is reached, manually tighten top bolts to lock in place.

Q2: Can I test conductivity under varying pressure?
Yes. You can perform conductivity or EIS testing under different pressure values and export data for comparison.

Q3: How to maintain stable pressure during testing?
For pressures below 100 MPa, a spring-loaded buffer can be added to minimize pressure drift over time.

📲 Contact us for CAD drawings, custom dimensions, or full testing system integration support.
📦 Small-batch trials and bulk orders supported.

🌍 International Orders & Shipping

📧 Email: contact@scimaterials.cn
📞 Tel: +86 153-7569-8751

🔗 Click to place quick orders via our eBay / Amazon / Alibaba stores.

🌐 We ship worldwide via DHL, FedEx, UPS, SF-Express, or other requested carriers.
📦 Bulk quantities with discount available upon request.

💳 Payment methods accepted: Bank Wire Transfer, PayPal, Credit Card (via Taobao), Alipay, WeChat Pay

📐 Product Specifications · Materials · Price List

📌 Notes:

• All models come standard with a ceramic insulation sleeve.
  PEEK inner sleeves are available upon request (please specify when ordering).

• Prices include one full standard kit, as listed in the Product Configuration Table.

• Customization available for:

  • Chamber diameter and shape (cylindrical, square, etc.)

  • Outer frame dimensions and fixing hole positions

  • Electrode interface design (banana plugs, bolts, etc.)

  • Optional integration with pressure sensors or electrical feedthroughs

• Bulk purchases and custom research orders are supported.
  Please contact us for quotations or special project collaborations.
