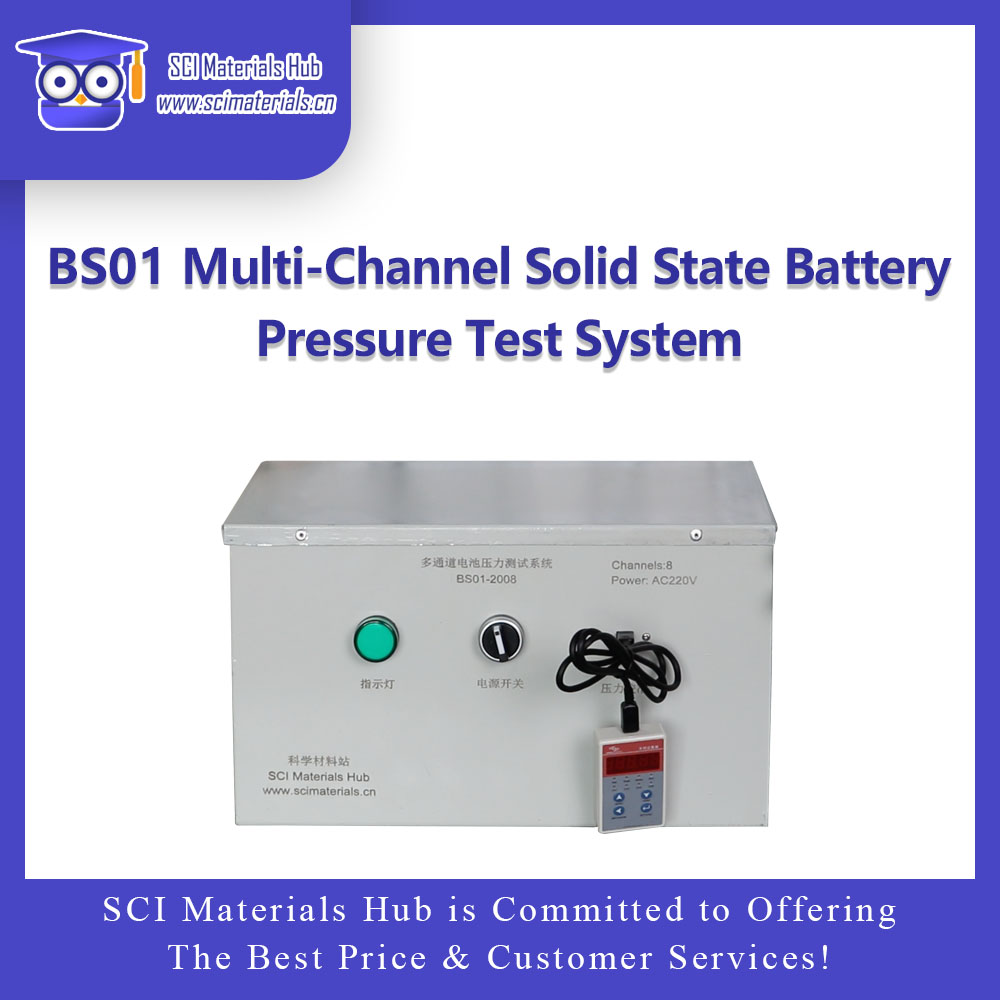

Multichannel solid-state battery pressure test system is a set of system suitable for the studyof solid-state batteries (SSB) . By simulating the structure and working principle of SSB, the device can test and study the electrochemical performance of SSB with different electrolyte materials under different initial pressure, and can record the pressure change dates of battery in the process of charge and discharge in real time.
The mold hardware in the multi-channel solid-state battery pressure testing system is the BM01 solid-state lithium-ion battery test mold(without pressure sensor and transmission control system), which can be purchased separately.

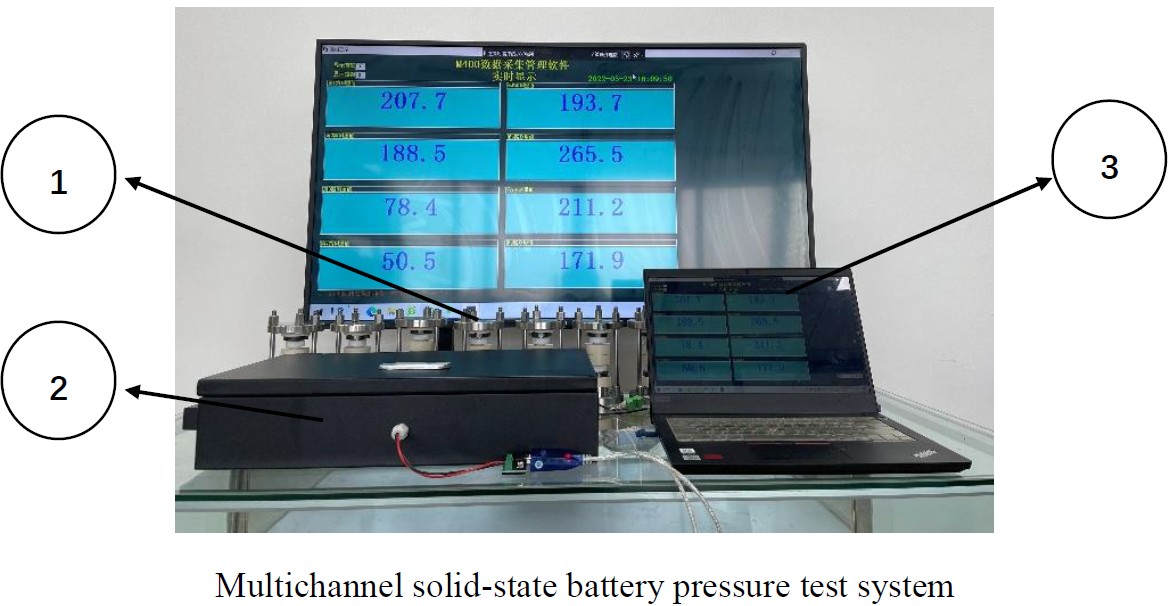

The system is mainly composed of three parts:
1) Solid state battery assembly mould;
2) Pressure sensor and transmission control system;
3) Computer and software (the computer is provided by the customer).
Operation
1) Sensor calibration: all sensors shall be calibrated before using.
2) Battery assembling: this process needs to be completed in the glove box.
3) Fixture locking: take out the assembled battery from the glove box, put it into thefixture, and manually fix the three nuts on the top of the fixture. (The pressure valuesneed to be zero cleared before locking the nuts)
Software settings
a) Start the power supply and connect the data cable;
b) Open the computer "Device Manager", and find the number of "Ports (COM andLPT)"
c) Start the software, select "Communication → Serial port setting/instrumentcommunication setting", set the correct Ports number and instrument address.
Initial pressure adjusting
a) Select "Welcome to this system;
b) Select "Real time numerical display" and required channels;
c) Use a wrench to evenly adjust the top three nuts of the fixture to determine theinitial pressure.
Data export: Select the "Historical datas report" and export the required data.
Turn off the power after use.
