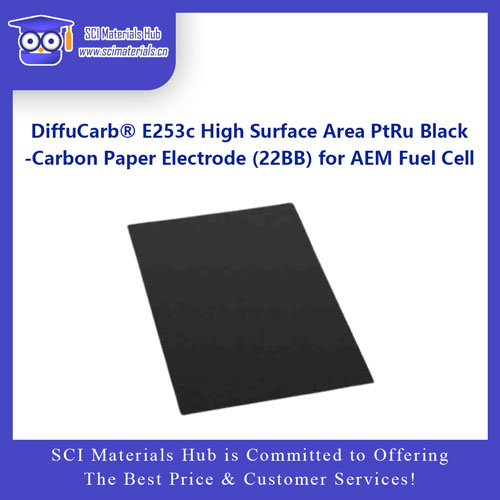

DiffuCarb® E253c PtRu Black-Carbon Paper Electrode (22BB) for AEMFC

  • Product Code：E253c
  • Description：
  • Brand：DiffuCarb®
  • Lead time：Ask for quote
  • Views：
  • Telephone：+86 153-5789-9751; +86 156-0553-2352
  • Keywords：DiffuCarb® E253c High Surface Area PtRu Black-Carbon Paper Electrode (22BB) for AEM Fuel Cell, SCI Materials Hub
DiffuCarb® E252c & E253c Carbon Paper Electrodes (22BB, AEMFC)
DiffuCarb® E252c / E253c SGL 22BB AEMFC / AFC Anion-Exchange Resin Binder Post-Coat

High-Surface PtRu Carbon Paper Electrodes
for AEMFC / AFC

DiffuCarb® E252c and E253c are advanced gas diffusion electrodes built on SGL 22BB hydrophobic carbon paper. E252c uses PtRu supported on high-surface-area carbon, while E253c uses high-surface-area PtRu Black. Both use anion-exchange resin ionomer binders and a post-coat treatment for AEMFC / AFC electrode development.

SGL 22BB ~0.22 mm PtRu / HSC PtRu Black Fumion® / PiperION® / NEXIONIC® OH⁻ Conduction
View E252c Prices Buy on Amazon
01
PRODUCT OVERVIEW

DiffuCarb® E252c & E253c

High-surface PtRu / carbon paper electrodes with anion-exchange resin binder and post-coat treatment

DiffuCarb® E252c and DiffuCarb® E253c are gas diffusion electrodes specifically developed for Anion Exchange Membrane Fuel Cells (AEMFC) and Alkaline Fuel Cells (AFC). Both use SGL 22BB hydrophobic carbon paper, high-surface-area PtRu catalyst systems, and anion-exchange resin-based ionomer binders such as Fumion®, PiperION® and NEXIONIC®.

A post-coat treatment is applied according to the supplied product description to improve membrane adhesion, ionic conduction and water management under alkaline operating conditions.

22BB

SGL 22BB

Hydrophobic microporous carbon paper used as the conductive gas-diffusion substrate.

OH⁻

Anion-Exchange Ionomer

Provides OH⁻ conduction pathways within the catalyst layer.

PtRu

Two PtRu Systems

E252c: PtRu/HSC. E253c: high-surface-area PtRu Black.

PC

Post-Coat

Surface post-treatment is used to improve catalyst-layer / membrane interfacial behavior.

02
KEY TECHNICAL COMPARISON

E252c vs. E253c

Catalyst morphology, binder function, post-treatment and application focus

E252c

PtRu / High-Surface-Area Carbon

PtRu alloy catalyst system positioned for stable distribution and continuous-load operation.

View E252c product page →
E253c

High-Surface-Area PtRu Black

PtRu Black catalyst system positioned for high initial reactivity and fast dynamic response.

View E253c product page →
E252c / E253c Technical Comparison
FeatureDiffuCarb® E252cDiffuCarb® E253c
Catalyst TypePtRu alloy nanoparticlesHigh-surface-area PtRu Black
Catalyst BehaviorStable distribution; positioned for continuous high-load useHigh initial reactivity; positioned for fast dynamic response
Gas Diffusion LayerSGL 22BB hydrophobic microporous carbon paperSGL 22BB hydrophobic microporous carbon paper
Binder TypeAnion-exchange resin ionomerAEM-compatible anion-exchange resin ionomer
Binder FunctionProvides OH⁻ pathways and supports membrane interface adhesionSupports ionic conduction and catalyst retention
Post-Coat TreatmentPost-spray resin layer for membrane adhesion and water regulationSame treatment concept for hydration and catalyst–membrane coupling
CO ToleranceHigh, according to the supplied product descriptionHigher, according to the supplied product description
Application FocusLong-term performance and stable operationRapid startup and transient-load demand
03
ANION-EXCHANGE IONOMER

Anion-Exchange Resin Binder

Designed to support OH⁻ transport and AEM-compatible electrode interfaces

OH⁻

OH⁻ Conduction Pathways

The binder provides anion-conduction pathways within the catalyst layer.

AEM

AEM Interface Compatibility

The ionomer system is intended for integration with anion-exchange membrane assemblies.

ALK

Alkaline-System Positioning

The supplied description positions the binder system for AEMFC and AFC electrodes.

Typical ionomer families: Fumion® / PiperION® / NEXIONIC®. Brand, model and ratio can be customized according to user requirements.
04
POST-COAT TREATMENT

Post-Coat Surface Treatment

An additional ionomer treatment on the catalyst-layer surface

IF

Interface Adhesion

Post-coating is used to improve contact between catalyst layer and AEM membrane.

H₂O

Hydration & Water Management

The supplied description positions post-coating as a tool for improved hydration consistency and water regulation.

MEA

MEA Integration

Suitable for AEM MEA development using hot-press, roll-press or coating/lamination workflows.

05
APPLICATION SCENARIOS

Recommended Application Positioning

Recommendations reproduced from the supplied product material

Application Scenario / Recommended Model
ScenarioRecommended ModelReason
Portable power systemsE253cLightweight positioning, fast response, high surface reactivity
Stationary alkaline fuel cellsE252cDurable, stable long-term-use positioning
Mobility and transportationE253cDynamic-load performance positioning
Laboratory testing & MEA R&DBothSuitable for comparative AEMFC testing
06
SUMMARY

Selection Summary

E252c and E253c serve different AEMFC / AFC development priorities

DiffuCarb® E252c

Positioned for durability, CO tolerance and long-term stability in continuous-operation AEMFC / AFC systems.

DiffuCarb® E253c

Positioned for high-performance dynamic environments requiring quick response and high surface reactivity.

Both electrodes use anion-exchange resin binders and post-treatment coating according to the supplied product definition. Actual membrane choice, ionomer ratio, catalyst loading and MEA process should be matched to the intended test condition.
07
E252c MODEL & PRICE

DiffuCarb® E252c PtRu/HSC Carbon Paper Electrode

SGL 22BB · AEM Fuel Cell · USD price list

DiffuCarb® E252c Model / PtRu Loading / Price Table
Model / Catalyst SystemCarbon Paper & ThicknessPtRu LoadingCatalyst5×5 cm²10×10 cm²15×15 cm²20×20 cm²
E252c · 0.4 mg/cm² · 50% PtRu (1:1.5)/HSC22BB, ~0.22 mm0.4 mg/cm² PtRu (1:1.5)50% PtRu (1:1.5) / High Surface Area Carbon$96$270$540$656
E252c · 0.5 mg/cm² · 50% PtRu (1:1.5)/HSC22BB, ~0.22 mm0.5 mg/cm² PtRu (1:1.5)50% PtRu (1:1.5) / High Surface Area Carbon$98$276$556$676
E252c · 0.5 mg/cm² · 80% PtRu (1:1)/HSC22BB, ~0.22 mm0.5 mg/cm² PtRu (1:1)80% PtRu (1:1) / High Surface Area Carbon$98$276$556$676
E252c · 1.0 mg/cm² · 80% PtRu (1:1)/HSC22BB, ~0.22 mm1.0 mg/cm² PtRu (1:1)80% PtRu (1:1) / High Surface Area Carbon$130$376$756$916
SCI Materials Hub is Committed to Offering The Best Price & Customer Services!
08
E253c MODEL & PRICE

DiffuCarb® E253c High-Surface-Area PtRu Black Carbon Paper Electrode

SGL 22BB · AEM Fuel Cell · USD price list

DiffuCarb® E253c Model / PtRu Loading / Price Table
Model / Catalyst SystemCarbon Paper & ThicknessPtRu LoadingCatalyst5×5 cm²10×10 cm²15×15 cm²20×20 cm²
E253c · 1.0 mg/cm² · High-Surface-Area PtRu Black22BB, ~0.22 mm1.0 mg/cm² PtRuHigh-Surface-Area PtRu (1:1)$100$276$556$796
E253c · 1.5 mg/cm² · High-Surface-Area PtRu Black22BB, ~0.22 mm1.5 mg/cm² PtRuHigh-Surface-Area PtRu (1:1)$110$316$636$856
E253c · 2.0 mg/cm² · High-Surface-Area PtRu Black22BB, ~0.22 mm2.0 mg/cm² PtRuHigh-Surface-Area PtRu (1:1)$120$349$696$916
E253c · 3.0 mg/cm² · High-Surface-Area PtRu Black22BB, ~0.22 mm3.0 mg/cm² PtRuHigh-Surface-Area PtRu (1:1)$140$396$796$1116
E253c · 4.0 mg/cm² · High-Surface-Area PtRu Black22BB, ~0.22 mm4.0 mg/cm² PtRuHigh-Surface-Area PtRu (1:1)$156$456$912$1376
SCI Materials Hub is Committed to Offering The Best Price & Customer Services!
09
CUSTOMIZATION

Custom Electrode Configuration

The following information can be customized according to user requirements

mg

Catalyst Loading

Custom PtRu catalyst loading can be specified according to the target electrode design.

CAT

Catalyst Brand / Type / Model

Catalyst brand, catalyst family and specific model can be customized.

ION

Ionomer / Binder

Ionomer or binder brand, model and ratio can be adjusted.

GDL

Carbon Paper

Carbon-paper brand and model can be selected according to the electrode design.

International Orders & Shipping

For quotations, bulk orders, custom configurations or international procurement, contact SCI Materials Hub.

Email: contact@scimaterials.cn
Tel: +86 130-0303-8751 / +86 156-0553-2352
WeChat: SCI-Materials-Hub
Shipping: DHL / SF-Express / requested carriers
Payment: Bank Transfer / PayPal / Credit Card / Alipay / WeChat Pay
Quick Orders: Amazon / eBay stores
Worldwide shipping is available. Bulk quantities and custom electrode configurations are available upon request.
Quick Order on Amazon
DiffuCarb® E252c / E253c · SGL 22BB · AEMFC / AFC Carbon Paper Electrodes · SCI Materials Hub
