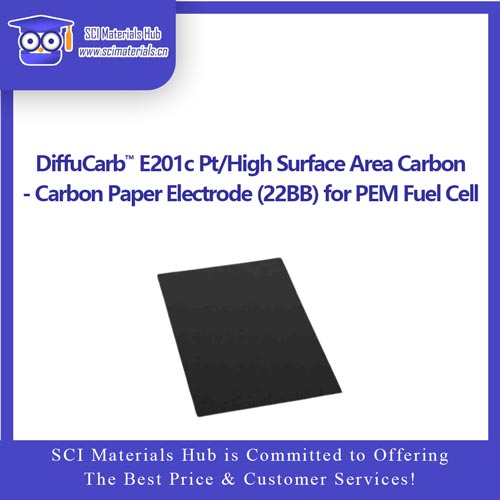

DiffuCarb™ E201c Pt/HSC - Carbon Paper Electrode (22BB) for PEMFC

  • Product Code:E201c
  • Description:
  • Brand:DiffuCarb™
  • Lead time:Ask for quote
  • Views:
  • Telephone:+86 153-5789-9751; +86 156-0553-2352
  • Keywords:DiffuCarb™ E201c Pt/High Surface Area Carbon-Carbon Paper Electrode (22BB) for PEM Fuel Cell, SCI Materials Hub
65.7K

DiffuCarb™ E201c Pt/HSC-Carbon Paper Electrode (22BB) for PEM Fuel Cell

1. Detailed Product Description:

The DiffuCarb™ E201c Pt/HSC-Carbon Paper Electrode (22BB) is a high-performance electrode material specifically designed for Proton Exchange Membrane Fuel Cells (PEMFC). This electrode features a highly efficient platinum (Pt) catalyst supported on high surface area carbon (HSC), which is then uniformly coated onto a carbon paper substrate. The carbon paper provides structural stability, gas diffusion properties, and electrical conductivity, making it an ideal material for PEM fuel cell applications. The integration of platinum ensures excellent catalytic activity for the oxygen reduction reaction (ORR), which is a key process in the functioning of PEMFCs.

2. Features:

  • Platinum Catalyst: Utilizes highly dispersed platinum nanoparticles for enhanced catalytic efficiency.
  • High Surface Area Carbon (HSC): Provides a large surface area to support the dispersion of platinum, optimizing reaction sites for the electrochemical reactions.
  • Carbon Paper Substrate: Ensures excellent gas permeability, mechanical strength, and electrical conductivity.
  • Uniform Coating: The electrode is coated with a well-distributed layer of Pt/HSC, which enhances the overall fuel cell performance and lifespan.
  • Optimized for PEMFC: Specifically engineered for use in Proton Exchange Membrane Fuel Cells, ensuring compatibility and optimal performance.

3. Advantages:

  • High Catalytic Activity: The platinum catalyst ensures fast reaction kinetics, particularly for the oxygen reduction reaction (ORR) in PEMFCs, improving overall cell efficiency.
  • Enhanced Durability: The use of high surface area carbon increases the stability and longevity of the platinum catalyst by minimizing aggregation.
  • Efficient Gas Diffusion: The carbon paper substrate provides a highly porous structure that facilitates efficient gas transport, ensuring reactants reach the active sites efficiently.
  • Low Electrical Resistance: The carbon paper’s conductive properties reduce energy losses, improving the overall efficiency of the fuel cell.
  • Compact Design: The thin and lightweight nature of the carbon paper electrode enables compact fuel cell designs, which is particularly important for mobile and space-constrained applications.

4. Applications:

  • Proton Exchange Membrane Fuel Cells (PEMFCs): The primary application of the DiffuCarb™ E201c electrode is in PEM fuel cells, where it acts as the cathode or anode, depending on the specific design.
  • Hydrogen Fuel Cell Vehicles: Given its high efficiency and durability, this electrode is well-suited for use in hydrogen-powered fuel cell vehicles.
  • Stationary Power Generation: Ideal for PEMFCs used in backup power systems and stationary power generation applications.
  • Portable Electronics: Its compact and lightweight nature also makes it suitable for portable fuel cell systems in electronics.
  • Aerospace and Military Applications: The performance, durability, and reliability of the electrode material make it a candidate for aerospace and defense fuel cell technologies.



All components can be customized according to user requirements

Component

Details

Catalyst

PK, Fueiceel®, Accelerate®, HISPEC and others

Gas diffusion layer

Sigracet series、AvCarb series、Toray series、Freudenberg、DiffuCarb™ series, etc

Binders

Nafion series, etc

Unless specifically required, SCI Materials Hub will provide our standardized-formulated gas diffusion electrodes.


For international orders, please ask us for quotes via


Email: contact@scimaterials.cn

Tel: +86 130-0303-8751 / +86 156-0553-2352

Wechat: SCI-Materials-Hub


Clik here to put quick orders on our Alibaba / Amazon / ebay store.

DiffuCarb™ E201c Pt/HSC-Carbon Paper Electrode (22BB) for PEM Fuel Cell

Electrode Type

Carbon paper

and Thickness

Pt loadingCatalystsPrice and Specifications

E201c 0.2 mg/cm² 20% Pt/HSC -

Carbon Paper Electrode (22BB) for PEMFC

22BB, ~0.22mm0.2 mg/cm² Pt

20% Pt(2-2.5nm)

/High Surface Area Carbon

5x5cm², $90;10x10cm², $256

15x15cm², $516;20x20cm², $596

E201c 0.3 mg/cm² 30% Pt/HSC -

Carbon Paper Electrode (22BB) for PEMFC

22BB, ~0.22mm0.3 mg/cm² Pt

30% Pt(2-2.5nm)

/High Surface Area Carbon

5x5cm², $92;10x10cm², $260

15x15cm², $536;20x20cm², $636

E201c 0.3 mg/cm² 40% Pt/HSC -

Carbon Paper Electrode (22BB) for PEMFC

22BB, ~0.22mm0.3 mg/cm² Pt

40% Pt(2-2.5nm)

/High Surface Area Carbon

5x5cm², $92;10x10cm², $260

15x15cm², $536;20x20cm², $636

E201c 0.4 mg/cm² 50% Pt/HSC -

Carbon Paper Electrode (22BB) for PEMFC

22BB, ~0.22mm0.4 mg/cm² Pt

50% Pt(2-2.5nm)

/High Surface Area Carbon

5x5cm², $96;10x10cm², $270

15x15cm², $540;20x20cm², $656

E201c 0.5 mg/cm² 60% Pt/HSC -

Carbon Paper Electrode (22BB) for PEMFC

22BB, ~0.22mm0.5 mg/cm² Pt

60% Pt(2.5-3.0nm)

/High Surface Area Carbon

5x5cm², $98;10x10cm², $276

15x15cm², $556;20x20cm², $676

E201c 1 mg/cm² 70% Pt/HSC -

Carbon Paper Electrode (22BB) for PEMFC

22BB, ~0.22mm1 mg/cm² Pt

70% Pt(3.0nm)

/High Surface Area Carbon

5x5cm², $130;10x10cm², $376

15x15cm², $756;20x20cm², $916

SCI Materials Hub is Committed to Offerig The Best Price & Customer Services!

The following information can be customized according to user needs

Catalyst loading capacity

Catalyst brand type and model

Brand, model, and proportion of ionomer or binder

Brand and model of carbon paper, etc


Worldwide shipping via DHL, SF-Express & other requested carriers.

Payments via Bank Transfer, Paypal, Credit card (via Taobao), Alipay, Wechat-pay are accepted.

Partial references citing our materials (from Google Scholar)


Carbon Dioxide Reduction

1. ACS Nano Strain Relaxation in Metal Alloy Catalysts Steers the Product Selectivity of Electrocatalytic CO2 Reduction

The bipolar membrane (Fumasep FBM) in this paper was purchased from SCI Materials Hub, which was used in rechargeable Zn-CO2 battery tests. The authors reported a strain relaxation strategy to determine lattice strains in bimetal MNi alloys (M = Pd, Ag, and Au) and realized an outstanding CO2-to-CO Faradaic efficiency of 96.6% with outstanding activity and durability toward a Zn-CO2 battery.


2. Front. Chem. Boosting Electrochemical Carbon Dioxide Reduction on Atomically Dispersed Nickel Catalyst

In this paper, Vulcan XC-72R was purchased from SCI Materials Hub. Vulcan XC 72R carbon is the most common catalyst support used in the anode and cathode electrodes of Polymer Electrolyte Membrane Fuel Cells (PEMFC), Direct Methanol Fuel Cells (DMFC), Alkaline Fuel Cells (AFC), Microbial Fuel Cells (MFC), Phosphoric Acid Fuel Cells (PAFC), and many more!


3. Adv. Mater. Partially Nitrided Ni Nanoclusters Achieve Energy-Efficient Electrocatalytic CO2 Reduction to CO at Ultralow Overpotential

An AEM membrane (Sustainion X37-50 Grade RT, purchased from SCI Materials Hub) was activated in 1 M KOH for 24 h, washed with ultra-purity water prior to use.


4. Adv. Funct. Mater. Nanoconfined Molecular Catalysts in Integrated Gas Diffusion Electrodes for High-Current-Density CO2 Electroreduction

In this paper (Supporting Information), an anion exchanged membrane (Fumasep FAB-PK-130 obtained from SCI Materials Hub (www.scimaterials.cn)) was used to separate the catholyte and anolyte chambers.

SCI Materials Hub: we also recommend our Fumasep FAB-PK-75 for the use in a flow cell.


5. Appl. Catal. B Efficient utilization of nickel single atoms for CO2 electroreduction by constructing 3D interconnected nitrogen-doped carbon tube network

In this paper, the Nafion 117 membrane was obtained from SCI Materials Hub.


6. Vacuum Modulable Cu(0)/Cu(I)/Cu(II) sites of Cu/C catalysts derived from MOF for highly selective CO2 electroreduction to hydrocarbons

In this paper, Proton exchange membrane (Nafion 117), Nafion D520, and Toray 060 carbon paper were purchased from SCI Materials Hub.


7. National Science Review Confinement of ionomer for electrocatalytic CO2 reduction reaction via efficient mass transfer pathways

An anion exchange membrane (PiperION-A15-HCO3) was obtained from SCI Materials Hub.


8. Catalysis Communications Facilitating CO2 electroreduction to C2H4 through facile regulating {100} & {111} grain boundary of Cu2O

Carbon paper (TGPH060), membrane solution (Nafion D520), and ionic membrane (Nafion N117) were obtained from Wuhu Eryi Material Technology Co., Ltd (a company under SCI Materials Hub).


Batteries

1. J. Mater. Chem. A Blocking polysulfides with a Janus Fe3C/N-CNF@RGO electrode via physiochemical confinement and catalytic conversion for high-performance lithium–sulfur batteries

Graphene oxide (GO) in this paper was obtained from SCI Materials Hub. The authors introduced a Janus Fe3C/N-CNF@RGO electrode consisting of 1D Fe3C decorated N-doped carbon nanofibers (Fe3C/N-CNFs) side and 2D reduced graphene oxide (RGO) side as the free-standing carrier of Li2S6 catholyte to improve the overall electrochemical performance of Li-S batteries.


2. Joule A high-voltage and stable zinc-air battery enabled by dual-hydrophobic-induced proton shuttle shielding

This paper used more than 10 kinds of materials from SCI Materials Hub and the authors gave detailed properity comparsion.

The commercial IEMs of Fumasep FAB-PK-130 and Nafion N117 were obtained from SCI Materials Hub.

Gas diffusion layers of GDL340 (CeTech) and SGL39BC (Sigracet) and Nafion dispersion (Nafion D520) were obtained from SCI Materials Hub.

Zn foil (100 mm thickness) and Zn powder were obtained from the SCI Materials Hub.

Commercial 20% Pt/C, 40% Pt/C and IrO2 catalysts were also obtained from SCI Materials Hub.


3. Journal of Energy Chemistry Vanadium oxide nanospheres encapsulated in N-doped carbon nanofibers with morphology and defect dual-engineering toward advanced aqueous zinc-ion batteries

In this paper, carbon cloth (W0S1011) was obtained from SCI Materials Hub. The flexible carbon cloth matrix guaranteed the stabilization of the electrode and improved the conductivity of the cathode.


4. Energy Storage Materials Defect-abundant commercializable 3D carbon papers for fabricating composite Li anode with high loading and long life

The 3D carbon paper (TGPH060 raw paper) were purchased from SCI Materials Hub.


5. Nanomaterials A Stable Rechargeable Aqueous Zn–Air Battery Enabled by Heterogeneous MoS2 Cathode Catalysts

Nafion D520 (5 wt%), and carbon paper (GDL340) were received from SCI-Materials-Hub.


6. SSRN An Axially Directed Cobalt-Phthalocyanine Covalent Organic Polymer as High-Efficient Bifunctional Catalyst for Zn-Air Battery

Carbon cloth (W0S1011) and other electrochemical consumables required for air cathode were provided by SCI Materials Hub.


Oxygen Reduction Reaction

1. J. Chem. Eng. Superior Efficiency Hydrogen Peroxide Production in Acidic Media through Epoxy Group Adjacent to Co-O/C Active Centers on Carbon Black

In this paper, Vulcan XC 72 carbon black, ion membrane (Nafion N115, 127 μL), Nafion solution (D520, 5 wt%), and carbon paper (AvCarb GDS 2230 and Spectracarb 2050A-1050) were purchased from SCI Materials Hub.


2. Journal of Colloid and Interface Science Gaining insight into the impact of electronic property and interface electrostatic field on ORR kinetics in alloy engineering via theoretical prognostication and experimental validation

The 20 wt% Pt3M (M = Cr, Co, Cu, Pd, Sn, and Ir) were purchased from SCI Materials Hub. This work places emphasis on the kinetics of the ORR concerning Pt3M (M = Cr, Co, Cu, Pd, Sn, and Ir) catalysts, and integrates theoretical prognostication and experimental validation to illuminate the fundamental principles of alloy engineering.


Water Electrolysis

1. International Journal of Hydrogen Energy Gold as an efficient hydrogen isotope separation catalyst in proton exchange membrane water electrolysis

The cathodic catalysts of Pt/C (20 wt%, 2–3 nm) and Au/C (20 wt%, 4–5 nm) were purchased from SCI Materials Hub.


2. Small Science Silver Compositing Boosts Water Electrolysis Activity and Durability of RuO2 in a Proton-Exchange-Membrane Water Electrolyzer

Two fiber felts (0.35 mm thickness, SCI Materials Hub) were used as the porous transport layers at both the cathode and the anode.


3. Advanced Functional Materials Hierarchical Crystalline/Amorphous Heterostructure MoNi/NiMoOx for Electrochemical Hydrogen Evolution with Industry-Level Activity and Stability

Anion-exchange membrane (FAA-3-PK-130) was obtained from SCI Materials Hub website.


Fuel Cells

1. Polymer Sub-two-micron ultrathin proton exchange membrane with reinforced mechanical strength

Gas diffusion electrode (60% Pt/C, Carbon paper) was purchased from SCI Materials Hub.


Characterization

1. Chemical Engineering Journal Electrochemical reconstitution of Prussian blue analogue for coupling furfural electro-oxidation with photo-assisted hydrogen evolution reaction

An Au nanoparticle film was deposited on the total reflecting plane of a single reflection ATR crystal (SCI Materials Hub, Wuhu, China) via sputter coater.
